Product Description
Miniature W1 Hose Clamps is all in carbon steel with zinc plated,5/16″ Band Width,the band is folded over to retain the nut, and together with the small screw-thread pitch, gives the clamp self-locking characteristics.
● Band width: 5/16″ (8mm)● Band thickness: 0.024” (0.6mm)● Hex. head screw: 1/4” (6.4mm)● Under RoHS & REACH standard, No chromium(VI) used for coating purposes● Installation Torque: 10 to 15 in-lbs (1.1 to 1.7 Nm)● Failure torque (minimum) :W1 22 in-lbs(2.5 Nm) W2 W4 W530 in-lbs(3.5 Nm)● Free running torque（max）:6 in-lbs (0.7 Nm)● Standard: SAE Feature Material W1 : All in carbon steel with zinc platedW2: Band and housing in stainless steel SS300, screw in carbon steel with zinc platedW4: All in SS300W5: All in SS316 Size list Packaging Available in bulk packaging, pack of 10, blister card packaging, polybag packaging, tag packaging, and customer designed packaging.
Hose Clamp

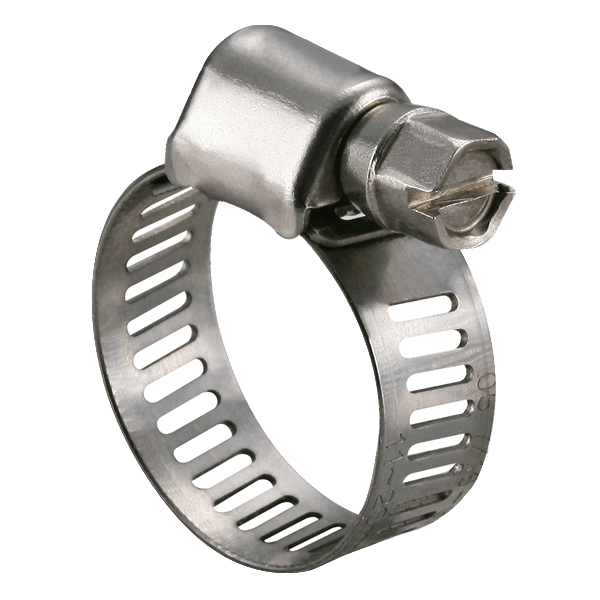

Miniature W1 Hose Clamps
$0.01
Ningbo Kingsun Hose Clamp Factory Stainless Steel Mini Clamp Min. 5/16″ Band Width,the 5/16″ Band Width Clamps(mini Clamps) are especially suitable for the smaller dimensions of plastic and rubber hose. Mini clamps have an unbroken band with rounded edges.
| Weight | 3 kg |
|---|---|
| Dimensions | 2 × 5 × 5 cm |
