Product Description High Torque Hose Clamps ● Band width: 1/2” (12.7mm) ,9/16”(14.2mm),5/8”(15.8mm) ● Band thickness: 0.024” (0.6mm) ● Hex. head screw: 5/16” (7.9mm) ● SAE J1508 type F Standard ● Under RoHS & REACH standard ● The recommended installation torque is 7.0 Nm (62 in-lbs).
Feature: 1. Quadra-Lock construction provides high torque
2. Material,,logo stamped on the clamps 3. Size stamped on the band Size list SAESIZE
Clamp Range (Size, Diameter)Min.(inch)Max.(inch)Min.(mm)Max..(mm)81/211325109/161-1/1614271211/161-1/417321613/161-1/221382013/161-3/4214424122551281-1/42-1/43257321-1/22-1/23863361-3/42-3/4447040235176442-1/43-1/45782482-1/23-1/26489522-3/43-3/47095563476102603-1/44-1/482108643-1/24-1/289114683-3/44-3/4951217245102127804-1/25-1/21141408856127152965-1/26-1/2140165More sizes available. Material W1 : All in carbon steel with zinc platedW2: Band and housing in stainless steel SS300, bolt in carbon steel with zinc platedW4: All in SS300W5: All in SS316 Packaging Available in bulk packaging, pack of 10, blister card packaging, polybag packaging, tag packaging, and customer designed packaging.
Hose Clamp

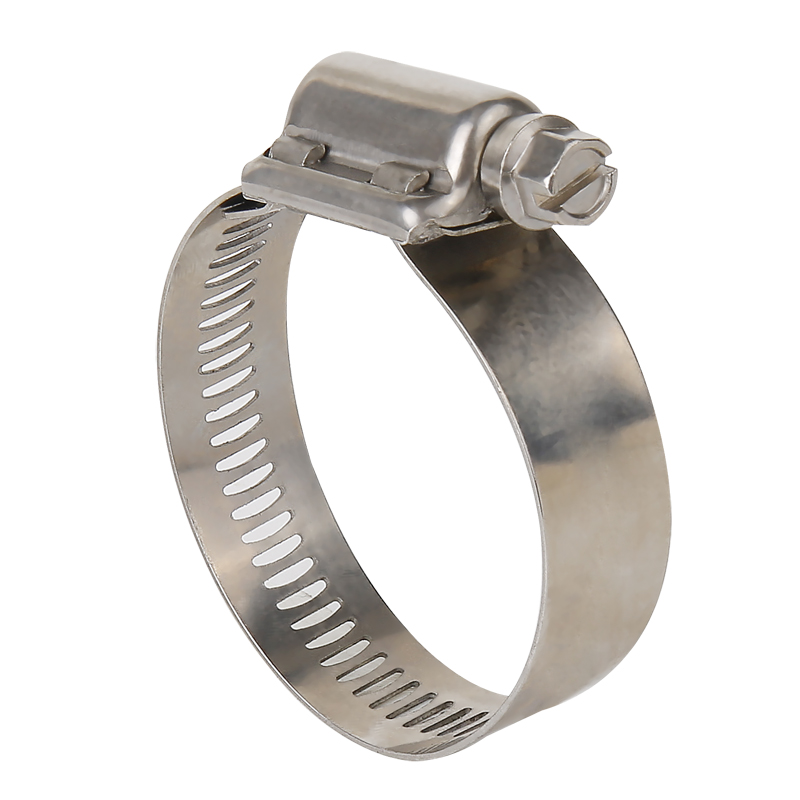

High Torque Hose Clamps
$0.01
High torque hose clamps is the strongest worm drive clamps made, because of the Quadra-Lock construction .Exceed all SAE requirements.They are used in automotive, heavy truck,marine and industrial applications,also available with lined band to protect soft silicone hoses.
| Weight | 3 kg |
|---|---|
| Dimensions | 2 × 5 × 5 cm |
