Product Description DIN3017 non-perforated worm gear hose clamps(germany type) ● Band width: 9mm & 12mm are available ● Band thickness: 0.6mm for 9mm band / 0.7mm for 12mm band ● Hex. head screw: 7mm width for both band width hose clamps ● Under RoHS & REACH standard, No chromium(VI) used for coating purposes ● Installation Torque: 9mm band width hose clamps: The recommended installation torque is 4.5 Nm (40 in-lbs). 12mm band width hose clamps: The recommended installation torque is 5.5 Nm (48 in-lbs). ● Failure torque (minimum):
9mm band W1 48 in-lbs(5.5 Nm) W2 W4 W5 62 in-lbs(7 Nm) 12mm band W1 53 in-lbs（6 Nm） W2 W4 W5 62 in-lbs(7 Nm) ● Free running torque（max）: 6 in-lbs(0.7 Nm) ● Standard: DIN3017
Feature:
Size List Size list：
Clamp Range(Size, Diameter)Band WidthMin.(mm)Max.(mm)Min.(inch)Max.(inch)9mm8125/161/210163/85/812201/23/412221/27/816255/8116275/81-1/1620323/41-1/4254011-5/830451-3/161-3/432501-1/4240601-5/82-3/8507022-3/460802-3/83-1/870902-3/43-1/2801003-1/84901103-1/24-3/810012044-3/4Clamp Range(Size, Diameter)Band WidthMin.(mm)Max.(mm)Min.(inch)Max.(inch)12mm16255/8116275/81-1/16203225/321-1/4254011-5/830451-3/161-3/432501-1/4240601-9/162-3/8507022-3/460802-3/83-1/870902-3/43-1/2801003-1/84901103-1/24-3/810012044-3/41101304-3/85-1/81201404-3/45-1/21301505-1/85-7/81401605-1/26-1/41501705-7/86-3/41601806-1/471701906-3/47-1/218020077-7/81902107-1/28-1/42002207-7/88-5/82102308-1/492202403-5/89-3/823025099-7/82402609-3/810-1/429031011-3/812-1/834036013-3/81339041015-3/816-1/844046017-3/818-1/849051019-1/420
More sizes available. Material Specifications
Corrosion ResistanceMaterial CompositionCommon UsesW1NormalCarbon steel with zinc platedhome purpose , plumbing, industrial applicationsW2Average Requirements430 Band & Housing Plated Carbon Steel ScrewAutomotive ● Truck Replacements ● Industrial ApplicationsW3Medium RequirementsAll 430 Stainless SteelAutomotive OE ● Industrial ApplicationsW4High Requirements Low Magnetic PermeabilityAll 304 Stainless SteelCritical Connections in Cars such as Petrol Pipes ● Close to Electronic Circuits ● Agricultural Machinery ● Motorbikes ● Signs ● General Outdoors ● Stainless Steel ChimneysW5Maximum Requirements Salt Water Resistant Low Magnetic PermeabilityAll 316 Stainless SteelClose to Electronic Circuits ● Shipbuilding ●Defense Technology ● Food Processing ● Sewage Treatment Facilities
Packaging Available in bulk packaging, pack of 10, blister card packaging, polybag packaging, tag packaging, and customer designed packaging.
Hose Clamp

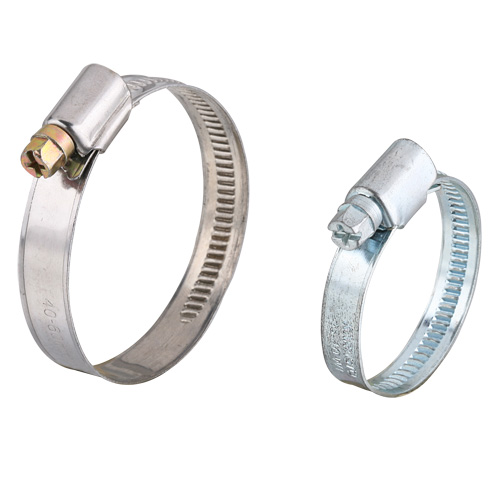

Din3017 Non-Perforated Worm Gear Hose Clamps(Germany type)
$0.01
Embossed worm gear hose clamps are popular, economy and precision-engineered to use in many general applications, available in 9mm and 12mm band width. Also called worm drive hose clamps, DIN3017 non-perforated worm gear hose clamps(germany type), or German type hose clamps. They has excellent performance while being at the same time very compact. The smooth non-perforated band and flared edge prevent soft silicone hoses from shearing or extruding during installation.
EMBOSSED WORM GEAR HOSE CLAMPS complies fully with the DIN 3017 norm and also with the RoHs &Reach.Material and clamping range and your logo can be stamped on the band.
For further information or products details, please feel free to contact us.
| Weight | 3 kg |
|---|---|
| Dimensions | 2 × 5 × 5 cm |
